Ideal for 3/4 and 1-ton pickups and all types of large frame rigs that require longer and heavier pulls. The VR EVO 12 features IP68-rated waterproof construction, an ultra-reliable Albright® contactor inside a relocatable control pack, and a state-of-the-art, two-in-one remote for added ease of use and versatility.

With it’s fast line-speed and lower amp draw, the VR EVO series of winches are the hardest-working standard-duty winches we’ve ever made, with tactical styling that looks great up front and at a price that won’t pull you out of your budget.

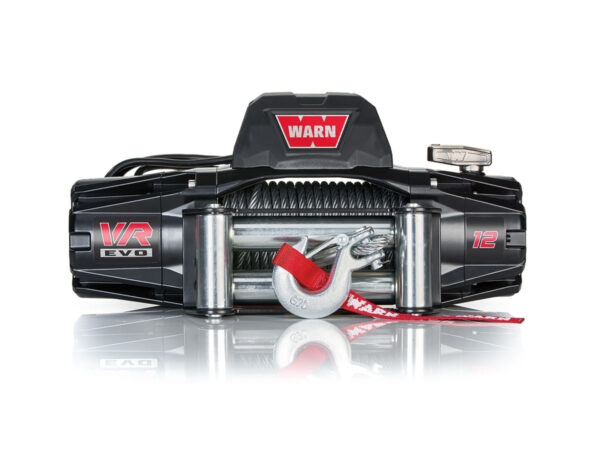

Winch Model: VR EVO 12

Parts Numbers: 103254 (VR EVO 12

Rated Line Pull: 12000 lbs. (5443 kg)

Motor: 12V DC, series wound

Electrical Controls: Albright Contactor

Remote Control: 2-in-1 plug-in remote with wireless capability and 11.5’ (3.5m) lead

Gear Train: 3-stage planetary

Gear Ratio: 234:1

Clutch (freespooling): Rotating ring gear clutch

Brake: Spring Brake

Drum Diameter/ Length: Steel and Synthetic: 2.5”/ 9.0” (6.73cm/ 23cm)

Weight: Shipping Steel: 90.81 lbs. (41.19 kg) Net Product Steel: 73.61 lbs. (33.39 kg)

Rope: Steel: 3/8”x 85’ (9.5mm x 25.9m)

Fairlead: Steel: Roller

Recommended Battery: 650 CCA min. for winching

Battery Leads: 0.98’’ x 6.5’ (25mm x 2m)

Finish: Powder coating over primer undercoating

Winch Dimensions: 21” L x 6.3” D x 10.1” H (534mm L x 160.5mm D x 256mm H)

Mounting Bolt Pattern: 10.0” x 4.5” (254mm x 114.3mm)

• Legendary WARN reliability and performance; 12,000 Pounds capacity. Comes with steel rope
• Two-in-one remote with wired AND wireless options for ease of use and versatility
• IP68-rated waterproof winch construction keeps the elements out and high performance Albright contactor delivers maximum reliability
• Control packs can be relocated for low-profile installations
• Durable, one-piece cast-aluminum tie-plate for added strength and durability
